Sealcon Straight and 90 ^o - Turn To Seal Fittings

SPECIFICATIONS:
Pressure Rating:	Operating Temperature:	Materials:
Liquid tight per NEMA 4x (IP 65)	Nylon 6/6: -40°F to 230°F (-40°C to 110°C)	Nylon 6/6

Technical Information

Go To Straight Fittings

P/N Black	Thread Range	Fits Nominal Conduit Size	Hex Dome Nut	Thread Length	Elbow Length	Elbow Height	Inside Diameter
Elbow Fittings			D	F	G	H	I
ET09AA-BK	PG 9	10	0.87	0.31	2.24	0.94	0.39
ET11AA-BK	PG 11	12	0.94	0.31	2.51	1.14	0.51
ET11NA-BK	3/8"NPT	12	0.94	0.32	2.51	1.14	0.4
ET16AA-BK	PG 16	17	1.18	0.31	2.68	1.3	0.63
ET16NA-BK	1/2"NPT	17	1.18	0.4	2.68	1.3	0.58
ET21AA-BK	PG 21	23	1.5	0.39	3.11	1.61	0.87
ET21NA-BK	3/4"NPT	23	1.5	0.43	3.11	1.61	0.79
ET29AA-BK	PG 29	29	1.81	0.39	3.74	2.16	1.1
ET29NA-BK	1"NPT	29	1.81	0.43	3.74	2.16	1.05

Go To Elbow Fittings

P/N Black	Thread Range	Fits Nominal Conduit Size	Thread Length	Body Length	Hex Body	Hex Dome Nut	Inside Diameter
Straight Fittings			A	B	C	D	E
ST07AA-BK	PG 7 / 1/4"NPT	8	0.31	1.02	0.75	0.87	0.33
ST09AA-BK	PG 9	10	0.31	1.02	0.75	0.87	0.43
ST11AA-BK	PG 11	12	0.31	1.06	0.87	0.94	0.55
ST11NA-BK	3/8"NPT	12	0.59	1.06	0.87	0.94	0.4
ST16AA-BK	PG 16	17	0.31	1.1	1.06	1.18	0.67
ST16NA-BK	1/2"NPT	17	0.51	1.1	1.06	1.18	0.58
ST21AA-BK	PG 21	23	0.39	1.34	1.46	1.5	0.91
ST21NA-BK	3/4"NPT	23	0.51	1.34	1.46	1.5	0.79
ST29AA-BK	PG 29	29	0.39	1.34	1.81	1.81	1.22
ST29NA-BK	1"NPT	29	0.75	1.34	1.81	1.81	1.05
ST36AA-BK	PG 36	37	0.59	1.77	2.16	2.44	1.57
ST48AA-BK	PG 48	50	0.59	2.09	2.56	2.87	2.01

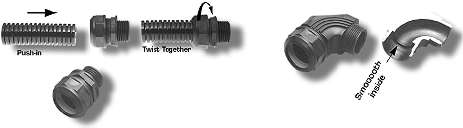

These Turn-to-seal fittings fit the same conduit as the SM Push-in fittings. They offer an economical solution for machine builders. The elbow has a smooth inside transition, making installation of cable and wires easy.
