| Marathon /
Kulka 603GP-Series Specifications |
| |
 |
| |
| General
Specifications |

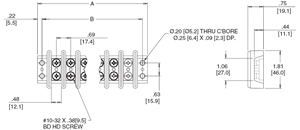

Dimensional Drawing |
- 11/16" (0.688") Center to Center Spacing
- 600 Volts AC/DC (Classes B/C)
- Base, General Purpose Phenolic, 150°C (UL
RTI)
- Open Back Design (Insulator Strip Required for
Voltage Rating)
- Screws, #10-32 Binder Head, Phil-Slot, Steel
- Terminals, Plated Brass
- 1-12 Poles
- Wire Range With Wire Binding Screw #10-#16 AWG -
30 Amps
- 50 Amps with Listed Wire Lugs
- UL Recognized File No. XCFR2.E47811
- CSA Certified File No. LR19766
- CE
|
 |
|
 |
