Weco Series ZAF2 Double Wire Ferrules


Weco Series ZAF2

Double Wire Ferrules Type ZAF2

standard color coding

Description
Insulated ferrules provide protection and ensure reliable connection of stranded wires for termination in terminal blocks. Ferrules are mechanically crimped to the stripped copper wire, WECO also offers wire stripping and crimping tools. Ferrule sizes range from 26 to 3/0 AWG and are available in single or double wire versions.

Technical Data
Wire range: 26 to 3/0 AWG (depending on product chosen)

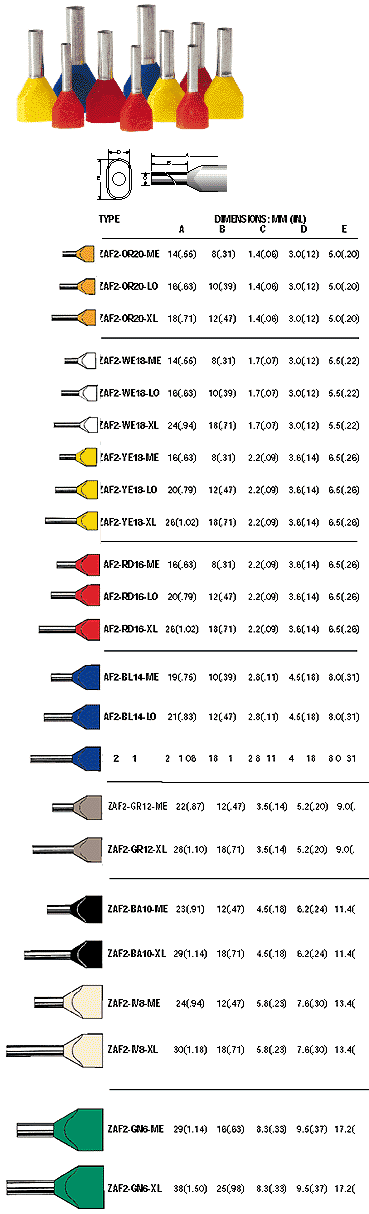

Wire stripping length: refer to dimension B
Standard package:26 to 14 AWG versions: 500 pieces
12 AWG ME,LO versions: 500 pieces
12 AWG XL to 6 AWG versions: 100 pieces
4 to 3/0 AWG versions: 50 pieces

Material
Metal sleeve:
electrolytic copper, tin plated
Insulation collar: Polypropylene
Maximum temperature limit:
110°C / 230°F

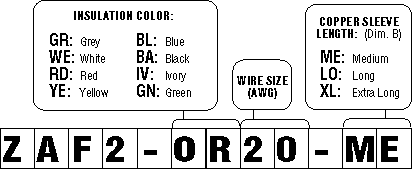

Ordering Information
