| Weco Series ZAF | |
Single Wire Ferrules Type ZAFstandard color coding |
|
| Description Insulated ferrules provide protection and ensure reliable connection of stranded wires for termination in terminal blocks. Ferrules are mechanically crimped to the stripped copper wire, WECO also offers wire stripping and crimping tools. Ferrule sizes range from 26 to 3/0 AWG and are available in single or double wire versions. |

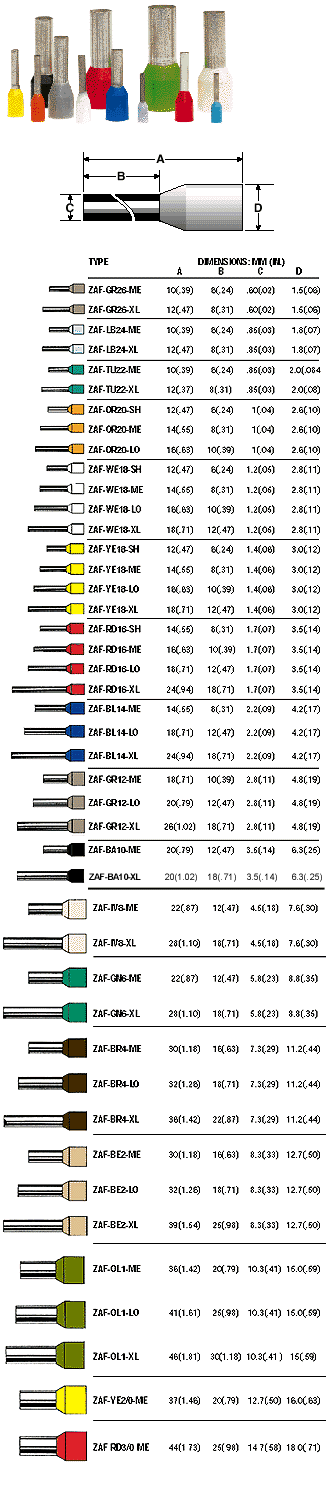

Technical Data Wire range: 26 to 3/0 AWG (depending on product chosen) Wire stripping length: refer to dimension B Standard package: 26 to 14 AWG versions: 500 pieces 12 AWG ME,LO versions: 500 pieces 12 AWG XL to 6 AWG versions: 100 pieces 4 to 3/0 AWG versions: 50 pieces |
Material Metal Sleeve: electrolytic copper, tin plated Insulation collar: Polypropylene Maximum temperature limit: 110 C / 230 F |

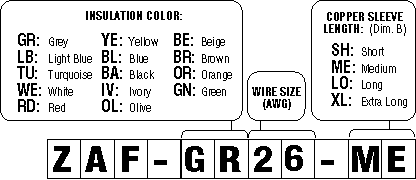

| Ordering Information |
