Description

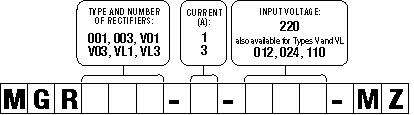

Rectifier modules MGR are available for a range of voltages and

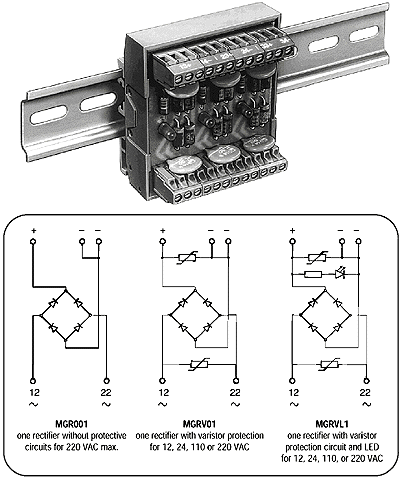

currents as listed above. The 001 version consists of a rectifier bridge, the
V01 version is equipped with varistor surge protectors at the input and output,
and the VL1 version has an additional LED status indicator. Versions are
available with either one or three rectifiers.
Technical Data
Nominal input voltage:
MGR001 and -003: Up to max. 220 VAC
MGRV01, -V03, VL1 and -VL3:
at choice.
12 V (rated voltage varistor:25 V)
24 V (rated voltage varistor: 50 V)
110 V (rated voltage varistor: 150 V)
220 V (rated voltage varistor: 275 V)
Nominal output current:
1A or 3A.
Maximum series connectable charging capacitor with 220 V AC input
voltage:
2200µF for 1A, 6800µF for 3A
Dimensions
Height:
connector: code M
mounting rail:
H-35: 51 mm / 2.01 in.
G-32: 56 mm / 2.20 in.
H-15: 50 mm /1.97 in.
Length:
with one rectifier
(001, V01, VL1): 24 mm / 0.95 in.
with three rectifiers
(003, V03, VL3): 69 mm / 2.72 in.
Width: 76 mm / 3.00 in.
|
