Indicator Modules MAZ

Description

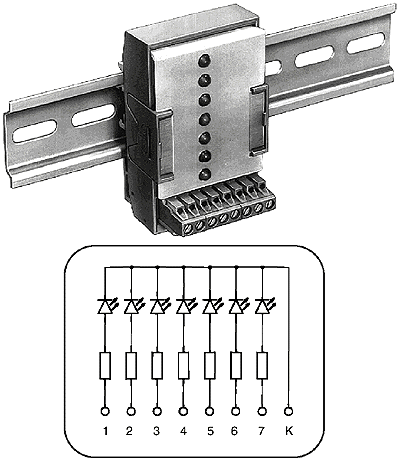

Indicator module MAZ provides centralized visual status indication of remote operating conditions. They are often used in conjunction with our relay modules, diode modules and multiplex modules.

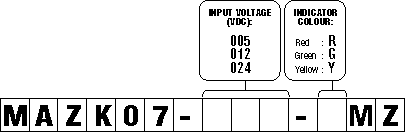

The module is equipped with 7 LED’s and is available in three indicator colors and three operating voltages.

Technical Data

Choice of DC operating voltages: 5 V, 12 V, 24 V

Dimensions

Height:
mounting rail:
H-35: 51 mm / 2.01 in.
G-32: 56 mm / 2.20 in.
H-15: 50 mm / 1.97 in.
Length: 47 mm / 1.85 in.
Width: 76 mm / 3.00 in.
