 Connex Connector Product Specification Sheet
Part Number 122455
Family/Series: TNC Coaxial Connectors
Product Type: Jack Crimp Attachments for Flexible And Semi-Rigid Cable
Description: Straight Crimp Jack - Miniature Cable

Specifications
Electrical
Cable Group 14   Cable Types: 178 / 196
Finish Nickel
Insulation Delrin
Impedance 50 ohms
Crimp Tool B

Remark:  With teflon sleeve, Hex. crimp size .178"

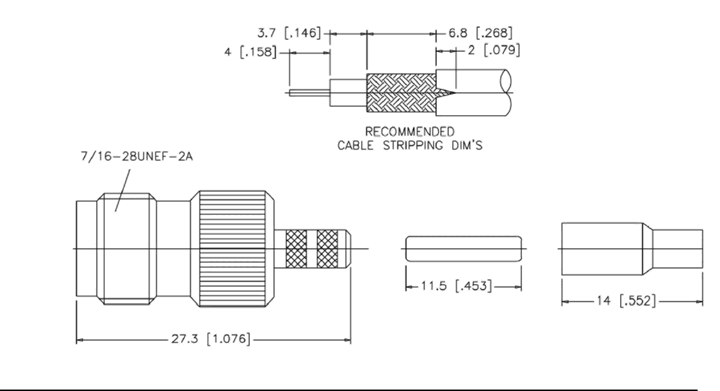

Schematic Drawing
Connex part number 122455 schematic
