 Connex Connector Product Specification Sheet
Part Number 122450
Family/Series: TNC Coaxial Connectors
Product Type: Bulkhead Jack Crimp Attachments for Flexible And Semi-Rigid Cable
Description: Bulkhead Crimp Jack - Miniature Cable

Specifications
Electrical
Cable Group 06A   Cable Types: 179 / U DOUBLE BRAIDED
Finish Nickel
Insulation Delrin
Impedance 75 ohms
Crimp Tool B

Remark:  With teflon sleeve, Hex. crimp size .178",3.5 [.138] Max. panel thickness

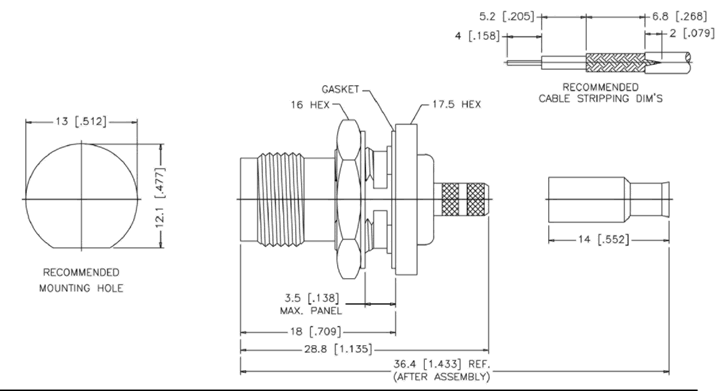

Schematic Drawing
Connex part number 122450 schematic
