 Connex Connector Product Specification Sheet
Part Number 122401
Family/Series: TNC Coaxial Connectors
Product Type: Bulkhead Jack Crimp Attachments for Flexible And Semi-Rigid Cable
Description: Bulkhead Solder Jack - Semi-Rigid Cable- Rear Mount

Specifications
Electrical
Cable Group 10   Cable Types: .141 Semi-Rigid / 402/U
Finish Nickel/Gold
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

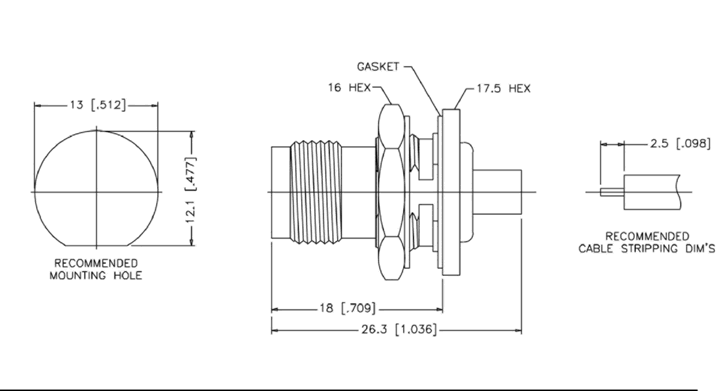

Schematic Drawing
Connex part number 122401 schematic
