Connex Connector Product Specification Sheet

Part Number  122268 Family/Series: TNC Coaxial Connectors Product Type: Twist-On Attachments for Flexible Cable Description: Right Angle Twist -On Plug

Specifications

Electrical

Cable Group 03    Cable Types: 59 / 62 / 140 / 210

Finish Nickel

Insulation Delrin

Impedance 50 ohms

Crimp Tool N/A

Remark:  Only for solid center conductor cable

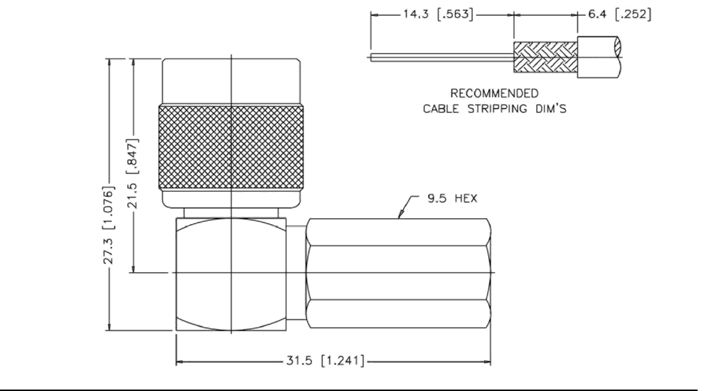

Schematic Drawing
