Connex Connector Product Specification Sheet

Part Number  122158 Family/Series: TNC Coaxial Connectors Product Type: Right Angle Plug Crimp Attachments for Flexible And Semi-Rigid Cable Description: Right Angle Crimp/Crimp Plug - Miniature Cable

Specifications

Electrical

Cable Group 05    Cable Types: 174 / 188A / 316 / B7805A

Finish Nickel

Insulation Delrin

Impedance 50 ohms

Crimp Tool B

Remark:  With teflon sleeve, Hex. crimp size .178”, Crimp/Crimp Type

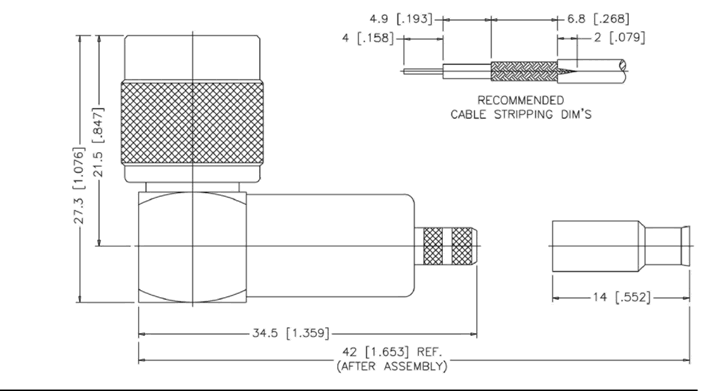

Schematic Drawing
