 Connex Connector Product Specification Sheet
Part Number142216
Family/Series:SMB/SMC Coaxial Connectors
Product Type:Crimp Attachments for Flexible & Semi-Rigid Cable
Description:Straight Crimp Jack - Flexible Cable
SMB Connectors

Specifications
Electrical
Cable Group19
FinishGold
InsulationTeflon
Impedance75 ohms
Crimp ToolB

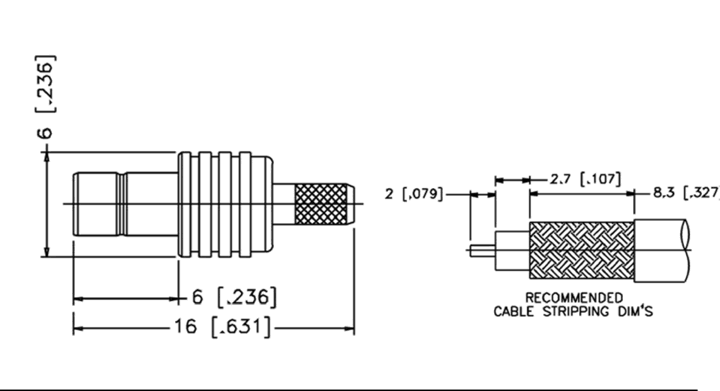

Schematic Drawing
Connex part number 142216 schematic
