 Connex Connector Product Specification Sheet
Part Number Add part number 142120 to your Quote. 142120
Family/Series: SMB/SMC Coaxial Connectors
Product Type: Clamp Terminations for Flexible Cable
Description: Straight Cable Jack
SMB Connectors

Specifications
Electrical
Cable Group 05    Cable Types: 174 / 188A / 316 / B7805A
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

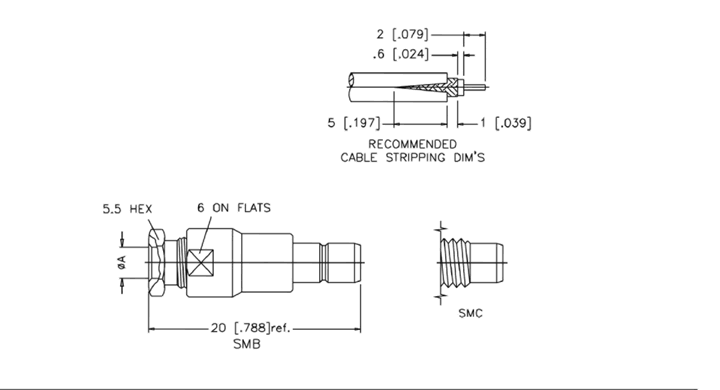

Schematic Drawing
Connex part number 142120 schematic
