Connex Connector SMA Type RF Coaxial Connector part number 132155

Part Number	132155
Family/Series:	SMA Coaxial Connectors
Product Type:	Panel Mount/Solder Pot Terminals
Description:	Panel Mount Jack Receptacle - 2 Hole Flange

Specifications

Electrical

Cable Group

N/A

Finish

Gold

Insulation

Teflon

Impedance

50 ohms

Crimp Tool

N/A

Remark:

Size of slot width = 0.3 mm [.01"], 0.5 mm [.02"], 0.7 mm [.03"],

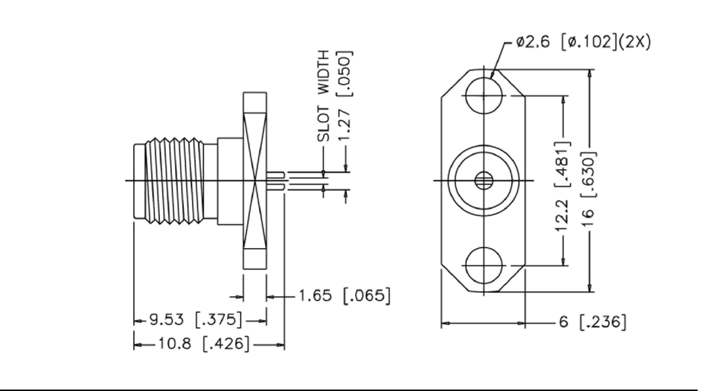

Schematic Drawing

Connex part number 132155 schematic
