Connex Connector SMA Type RF Coaxial Connector part number 132154

On-Line Electronics will be closed for the Holidays from Tuesday, December 24th, 2024 through Wednesday, January 1, 2025. There will be no shipping or receiving during this time. We will be open for business on Thursday January 2, 2025. From our families to yours, HAPPY HOLIDAYS!

Part Number	132154
Family/Series:	SMA Coaxial Connectors
Product Type:	Panel Mount/Solder Pot Terminals
Description:	Panel Mount Jack Receptacle - 4 Hole Square Flange

Specifications

Electrical

Cable Group

N/A

Finish

Gold

Insulation

Teflon

Impedance

50 ohms

Crimp Tool

N/A

Remark:

Size of slot width = 0.3 mm [.01"], 0.5 mm [.02"], 0.7 mm [.03"],

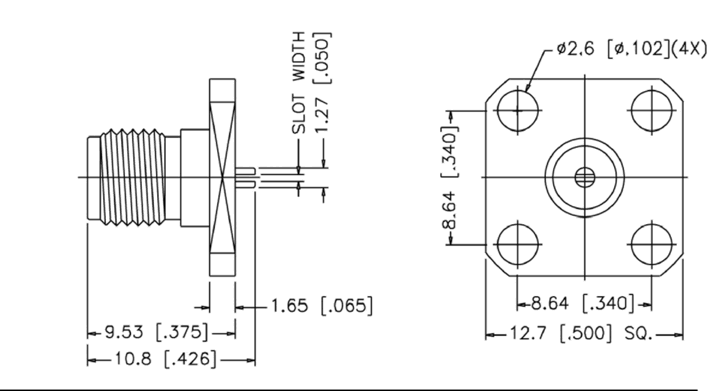

Schematic Drawing
