 Connex Connector Product Specification Sheet
Part Number Add part number 132148 to your Quote. 132148
Family/Series: SMA Coaxial Connectors
Product Type: Panel Mount/Solder Pot Terminals
Description: Panel Mount Plug Receptacle- 4 Hole Square Flange - Blunt Post

Specifications
Electrical
Cable Group N/A
Finish Gold
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

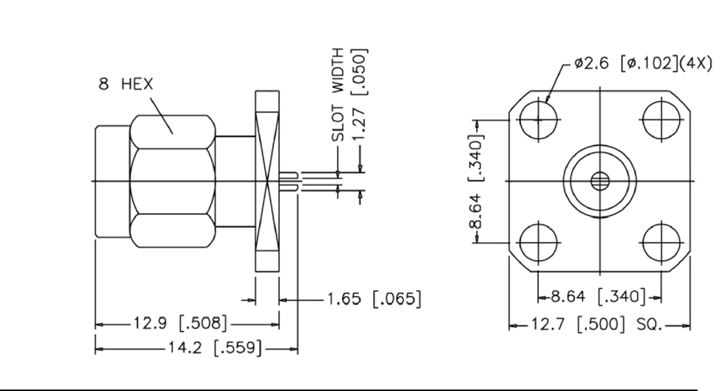

Schematic Drawing
Connex part number 132148 schematic
