 Connex Connector Product Specification Sheet
Part Number Add part number 132143 to your Quote. 132143
Family/Series: SMA Coaxial Connectors
Product Type: Panel Mount/Solder Pot Terminals
Description: Panel Mount Jack Receptacle - 2 Hole Flange

Specifications
Electrical
Cable Group N/A
Finish Gold
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

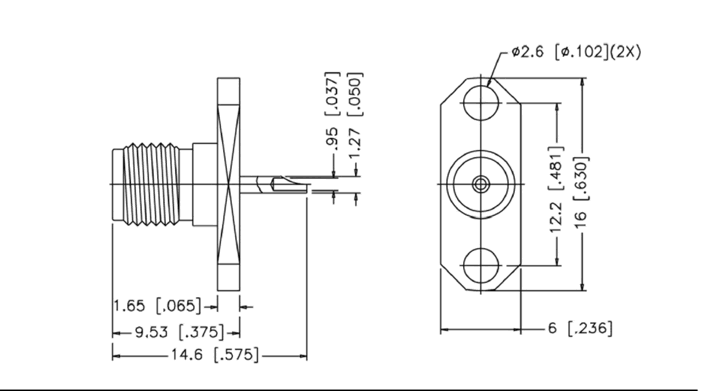

Schematic Drawing
Connex part number 132143 schematic
