Connex Connector N Type RF Coaxial Connector part number 172259

Part Number	172259
Family/Series:	N Coaxial Connectors
Product Type:	Crimp/Solder Attachments for Flexible And Semi-Rigid Cable
Description:	Straight Crimp Plug - Captive Contact Times LMR 500

Specifications

Electrical

Cable Group

N/A

Finish

Nickel

Insulation

Teflon

Impedance

50 ohms

Crimp Tool

.600 HEX

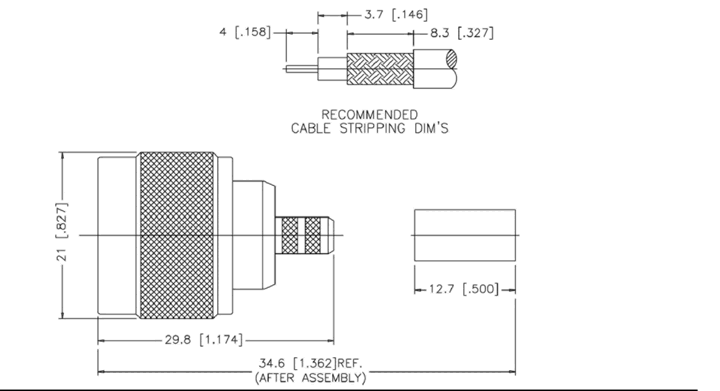

Schematic Drawing

Connex part number 172259 schematic
