Connex Connector N Type RF Coaxial Connector part number 172242

Part Number	172242
Family/Series:	N Coaxial Connectors
Product Type:	Crimp/Solder Attachments for Flexible And Semi-Rigid Cable
Description:	Bulkhead Solder Jack - Semi-Rigid Cable Front Mount

Specifications

Electrical

Cable Group

11 Cable Types: .085 Semi-Rigid / 405/U

Finish

Nickel/Gold

Insulation

Teflon

Impedance

50 ohms

Crimp Tool

N/A

Remark:

Rear Mount, except where indicated

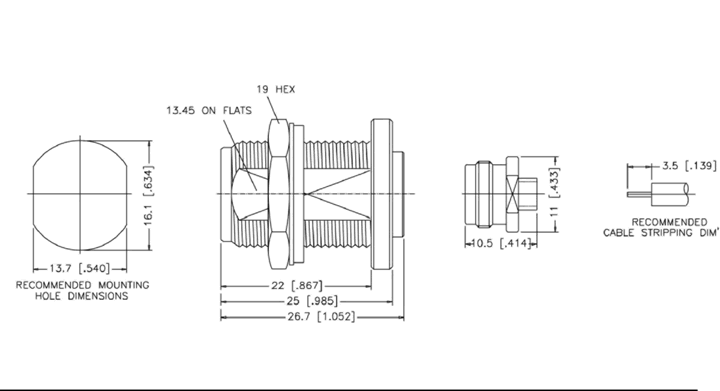

Schematic Drawing

Connex part number 172242 schematic
