 Connex Connector Product Specification Sheet
Part Number Add part number 172215 to your Quote. 172215
Family/Series: N Coaxial Connectors
Product Type: Crimp/Solder Attachments for Flexible And Semi-Rigid Cable
Description: Right Angle Crimp Plugs

Specifications
Electrical
Cable Group 01B    Cable Types: LMR200 / B7807A
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool A

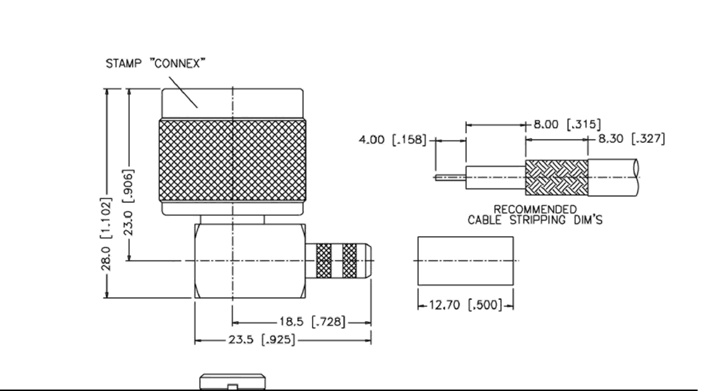

Schematic Drawing
Connex part number 172215 schematic
