Connex Connector N Type RF Coaxial Connector part number 172175

Part Number	172175
Family/Series:	N Coaxial Connectors
Product Type:	Crimp/Solder Attachments for Flexible And Semi-Rigid Cable
Description:	Straight Crimp Panel Jack- Captive Contact - Standard Cable

Specifications

Electrical

Cable Group

01A Cable Types: 55 / 142 / 223 / 400

Finish

Nickel

Insulation

Teflon

Impedance

50 ohms

Crimp Tool

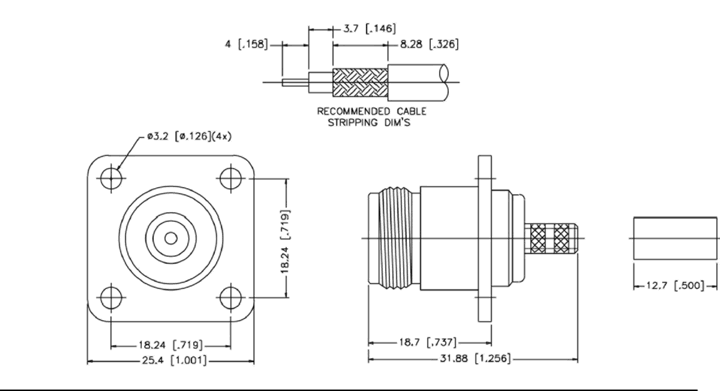

Schematic Drawing
