 Connex Connector Product Specification Sheet
Part Number Add part number 172166 to your Quote. 172166
Family/Series: N Coaxial Connectors
Product Type: Crimp/Solder Attachments for Flexible And Semi-Rigid Cable
Description: Straight Crimp Plug - Captive Contact

Specifications
Electrical
Cable Group 07A    Cable Types: 214
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool D

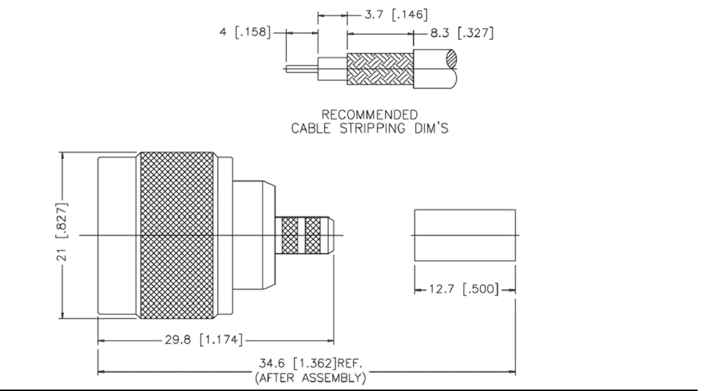

Schematic Drawing
Connex part number 172166 schematic
