 Connex Connector Product Specification Sheet
Part Number Add part number 172161 to your Quote. 172161
Family/Series: N Coaxial Connectors
Product Type: Crimp/Solder Attachments for Flexible And Semi-Rigid Cable
Description: Straight Crimp Plug - Captive Contact

Specifications
Electrical
Cable Group 02    Cable Types: LMR200 / B7807A
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool J

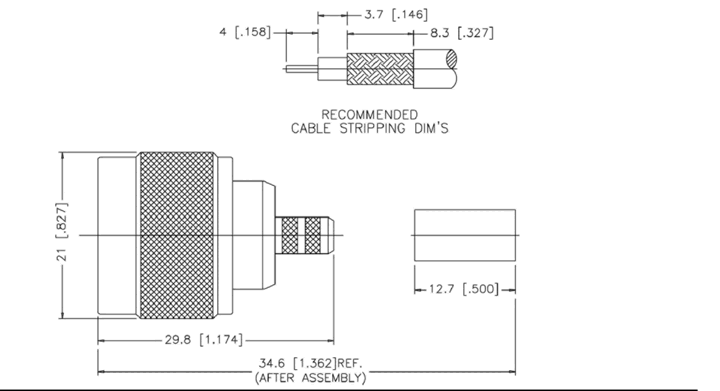

Schematic Drawing
Connex part number 172161 schematic
