 Connex Connector Product Specification Sheet
Part Number252164
Family/Series:MCX Coaxial Connectors
Product Type:Crimp Attachments for Flexible And Semi-Rigid Cable
Description:Straight Crimp Jack - Flexible Cable

Specifications
Electrical
Cable Group05A   Cable Types: 316 / U DOUBLE BRAIDED
FinishNickel
InsulationTeflon
Impedance50 ohms
Crimp ToolC

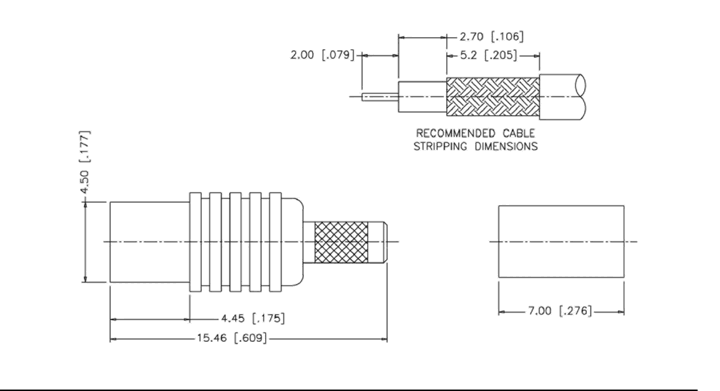

Schematic Drawing
Connex part number 252164 schematic
