 Connex Connector Product Specification Sheet
Part Number Add part number 252130 to your Quote. 252130
Family/Series: MCX Coaxial Connectors
Product Type: Crimp Attachments for Flexible And Semi-Rigid Cable
Description: Straight Solder Jack - Semi Rigid Cable

Specifications
Electrical
Cable Group 11    Cable Types: .085 Semi-Rigid / 405/U
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool N/A

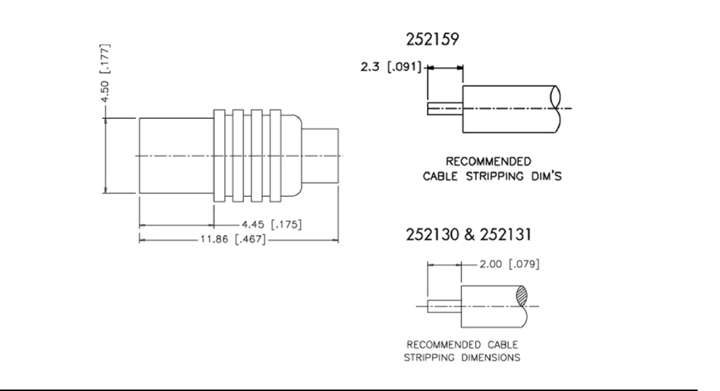

Schematic Drawing
Connex part number 252130 schematic
