 Connex Connector Product Specification Sheet
Part Number Add part number 252123 to your Quote. 252123
Family/Series: MCX Coaxial Connectors
Product Type: Crimp Attachments for Flexible And Semi-Rigid Cable
Description: Right Angle Crimp Plug - Flexible Cable

Specifications
Electrical
Cable Group 01A    Cable Types: 55 / 142 / 223 / 400
Finish Gold
Insulation Teflon
Impedance 50 ohms
Crimp Tool A

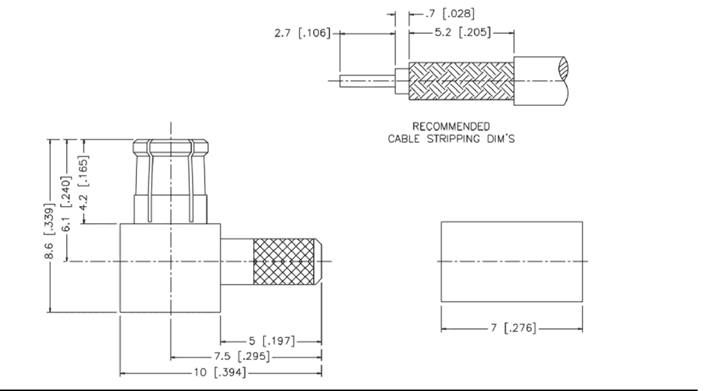

Schematic Drawing
Connex part number 252123 schematic
