 Connex Connector Product Specification Sheet
Part Number251122
Family/Series:MCX Coaxial Connectors
Product Type:Crimp Attachments for Flexible And Semi-Rigid Cable
Description:Right Angle Crimp Plug - Flexible Cable

Specifications
Electrical
Cable Group01A   Cable Types: 55 / 142 / 223 / 400
FinishNickel
InsulationTeflon
Impedance50 ohms
Crimp ToolA

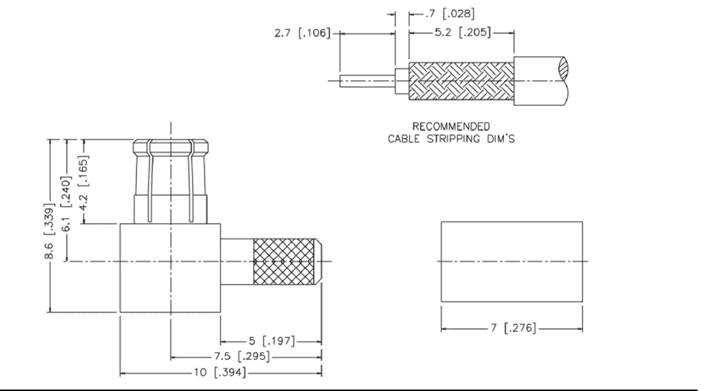

Schematic Drawing
Connex part number 251122 schematic
