 Connex Connector Product Specification Sheet
Part Number Add part number 222119 to your Quote. 222119
Family/Series: F Coaxial Connectors
Product Type: Crimp Attachments for Flexible And Semi-Rigid Cable
Description: Straight Crimp Plug - 3-Piece Crimp

Specifications
Electrical
Cable Group 03    Cable Types: 59 / 62 / 140 / 210
Finish Nickel
Insulation Delrin
Impedance 75 ohms
Crimp Tool A

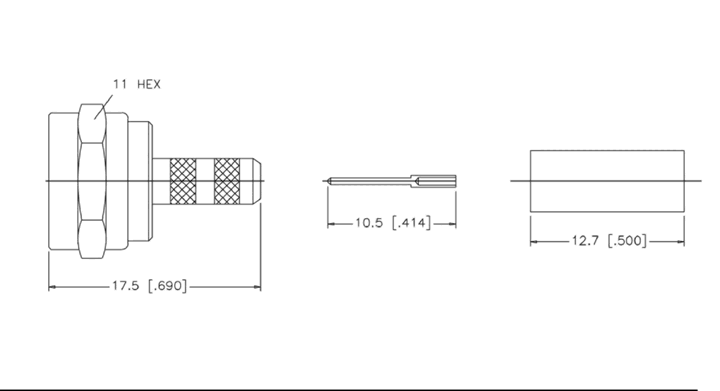

Schematic Drawing
Connex part number 222119 schematic
