 Connex Connector Product Specification Sheet
Part Number Add part number 192114 to your Quote. 192114
Family/Series: FME Coaxial Connectors
Product Type: Crimp Attachments for Flexible Cable
Description: Straight Crimp Plug

Specifications
Electrical
Cable Group 05    Cable Types: 174 / 188A / 316 / B7805A
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool B

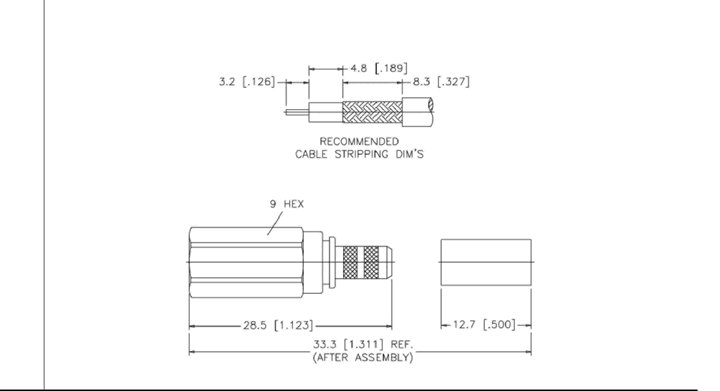

Schematic Drawing
Connex part number 192114 schematic
