Connex Connector BNC Type RF Coaxial Connector part number 112648

Part Number	112648
Family/Series:	BNC Coaxial Connectors
Product Type:	Bulkhead Jack Crimp Attachments for Flexible Cable
Description:	Bulkhead Crimp Jack - Miniature Cable

Specifications

Electrical

Cable Group

06A Cable Types: 179 / U DOUBLE BRAIDED

Finish

Nickel

Insulation

Delrin

Impedance

75 ohms

Crimp Tool

Remark:

*Center contact .052" diameter, 30µ" Au, true 75 ohm. Use .044 Hex. crimp or 12-indent crimp.With teflon sleeve, Hex. crimp size .178", 3.5 [.138] Max. panel thickness

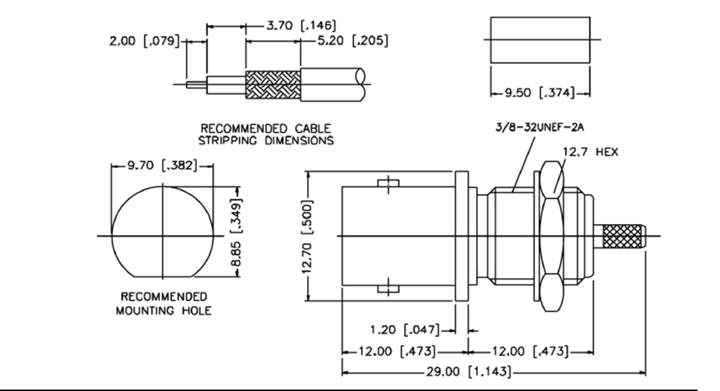

Schematic Drawing
