Connex Connector BNC Type RF Coaxial Connector part number 112647

Part Number	112647
Family/Series:	BNC Coaxial Connectors
Product Type:	Jack Crimp Attachments for Flexible Cable
Description:	Straight Crimp Jack - Miniature And Semi-Rigid Cable

Specifications

Electrical

Cable Group

06A Cable Types: 179 / U DOUBLE BRAIDED

Finish

Nickel

Insulation

Delrin

Impedance

75 ohms

Crimp Tool

Remark:

With teflon sleeve, Hex crimp size .178"

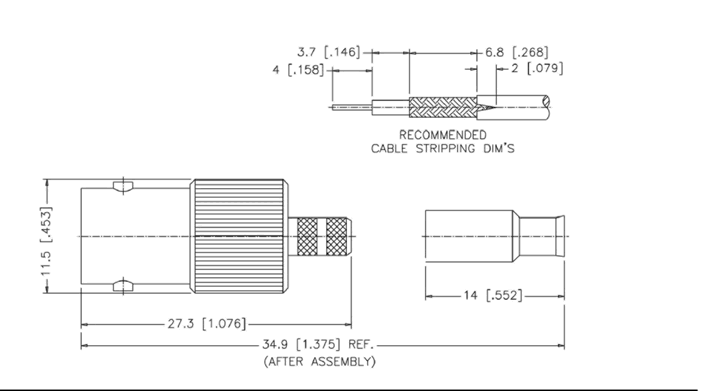

Schematic Drawing
