Connex Connector BNC Type RF Coaxial Connector part number 112646

Part Number	112646
Family/Series:	BNC Coaxial Connectors
Product Type:	Right Angle Plug Crimp Attachments for Flexible Cable
Description:	Right Angle Crimp/Solder Plug - Miniature Cable Brass Shell

Specifications

Electrical

Cable Group

06A Cable Types: 179 / U DOUBLE BRAIDED

Finish

Nickel

Insulation

Delrin

Impedance

75 ohms

Crimp Tool

Remark:

Cable Center Conductor Solder to pin directly

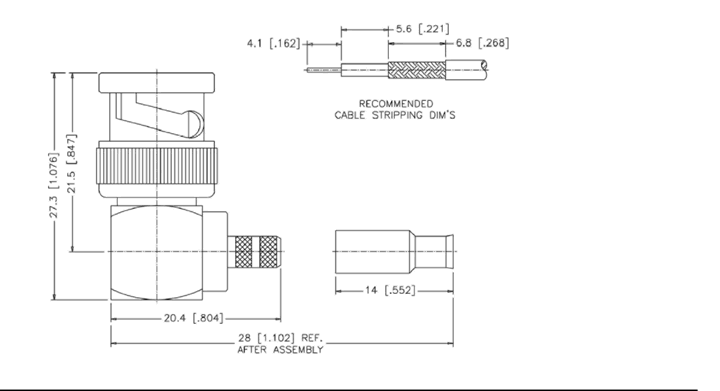

Schematic Drawing
