 Connex Connector Product Specification Sheet
Part Number112642
Family/Series:BNC Coaxial Connectors
Product Type:Clamp Attachments for Flexible Cable
Description:Straight Clamp Jack - Captive Contact

Specifications
Electrical
Cable Group07   Cable Types: 8 / 8A / 213 / 393
FinishNickel
InsulationTeflon
Impedance50 ohms
Crimp ToolN/A

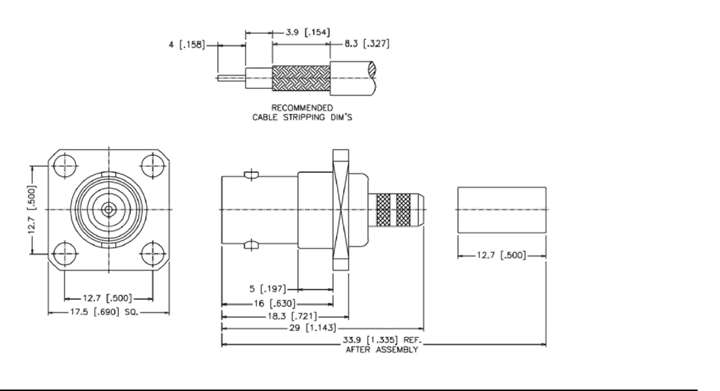

Schematic Drawing
Connex part number 112642 schematic
