Connex Connector BNC Type RF Coaxial Connector part number 112634

Part Number	112634
Family/Series:	BNC Coaxial Connectors
Product Type:	Bulkhead Jack Crimp Attachments for Flexible Cable
Description:	Bulkhead Crimp Jack - Miniature Cable front mount

Specifications

Electrical

Cable Group

05A Cable Types: 316 / U DOUBLE BRAIDED

Finish

Nickel

Insulation

Teflon

Impedance

50 ohms

Crimp Tool

Remark:

*Center contact .052" diameter, 30µ" Au, true 75 ohm. Use .044 Hex. crimp or 12-indent crimp. With teflon sleeve, Hex. crimp size .178", 3.5 [.138] Max. panel thickness

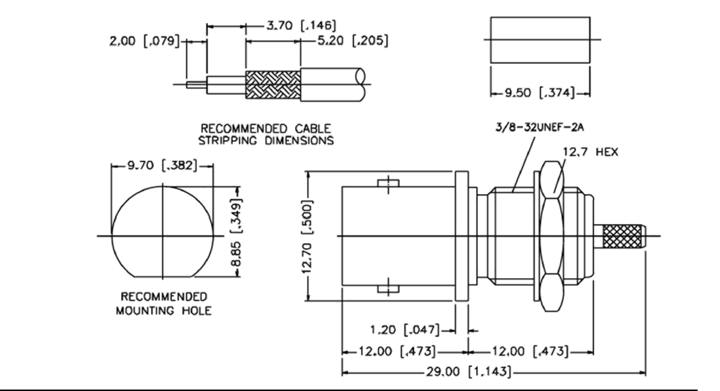

Schematic Drawing
