 Connex Connector Product Specification Sheet
Part Number Add part number 112629 to your Quote. 112629
Family/Series: BNC Coaxial Connectors
Product Type: Bulkhead Jack Crimp Attachments for Flexible Cable
Description: Bulkhead Crimp Jack - Standard Cable
Teflon/Captured

Specifications
Electrical
Cable Group 15    Cable Types: B8281 / B9231 / B9141
Finish Nickel
Insulation Teflon
Impedance 75 ohms
Crimp Tool E

Remark:  3.5 [.138] Max. panel thickness

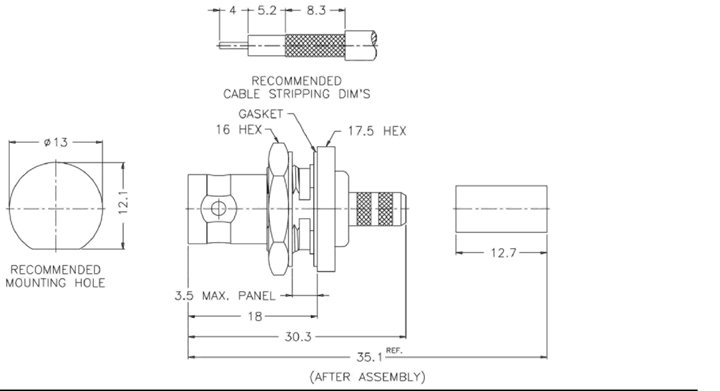

Schematic Drawing
Connex part number 112629 schematic
