 Connex Connector Product Specification Sheet
Part Number Add part number 112606 to your Quote. 112606
Family/Series: BNC Coaxial Connectors
Product Type: Plug Crimp Attachments for Flexible Cable
Description: Straight Crimp Plug - Captive Contact - Standard Cable
Brass Shell

Specifications
Electrical
Cable Group 07F    Cable Types: 11 / U-14AWG / B8213 / B9292 / B7731 / B1859A
Finish Nickel
Insulation Teflon
Impedance 75 ohms
Crimp Tool D

*  Center contact .053" diameter, 30µ" Au. True 75 ohm. Use .044 hex or 12-indent crimp

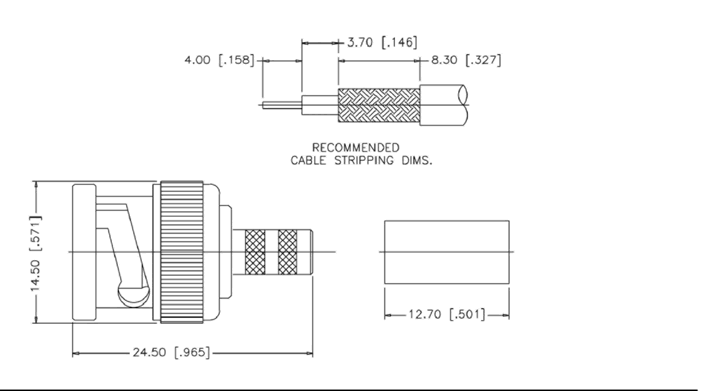

Schematic Drawing
Connex part number 112606 schematic
