 Connex Connector Product Specification Sheet
Part Number Add part number 112603 to your Quote. 112603
Family/Series: BNC Coaxial Connectors
Product Type: Jack Crimp Attachments for Flexible Cable
Description: Straight Crimp Jack - Standard Cable
Captured

Specifications
Electrical
Cable Group 07C    Cable Types: B9913 / LMR400 / B7810A / B8214
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool D

*Center contact .052" diameter, 30µ" Au. True 75 ohm. Use .044 hex or 12-indent crimp

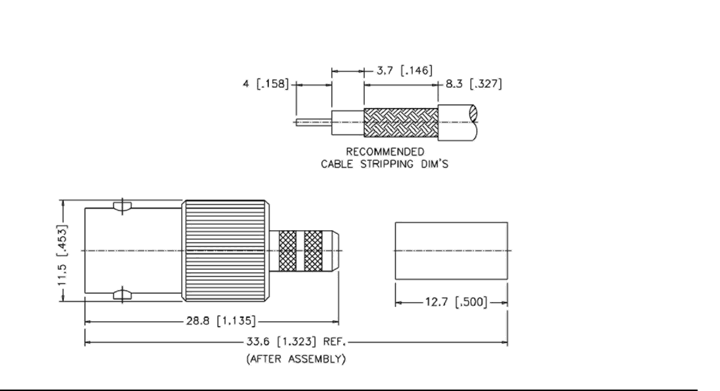

Schematic Drawing
Connex part number 112603 schematic
