Connex Connector BNC Type RF Coaxial Connector part number 112596

Part Number	112596
Family/Series:	BNC Coaxial Connectors
Product Type:	Right Angle Plug Crimp Attachments for Flexible Cable
Description:	Right Angle Crimp/Solder Plug - Standard Cable Brass Shell

Specifications

Electrical

Cable Group

07C Cable Types: B9913 / LMR400 / B7810A / B8214

Finish

Nickel

Insulation

Delrin

Impedance

50 ohms

Crimp Tool

Remark:	Cable Center Conductor Solder to pin directly
*	Center contact .053" diameter, 30µ" Au. True 75 ohm. Use .044 hex or 12-indent crimp

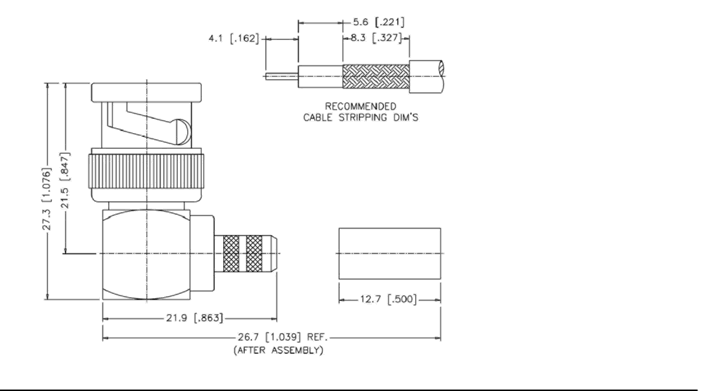

Schematic Drawing
