 Connex Connector Product Specification Sheet
Part Number Add part number 112593 to your Quote. 112593
Family/Series: BNC Coaxial Connectors
Product Type: Bulkhead Jack Crimp Attachments for Flexible Cable
Description: Bulkhead Crimp Jack - Standard Cable
Teflon/Captured

Specifications
Electrical
Cable Group 08B    Cable Types: 6 PLENUM / B1695A
Finish Nickel
Insulation Teflon
Impedance 50 ohms
Crimp Tool E

Remark:  3.5 [.138] Max. panel thickness

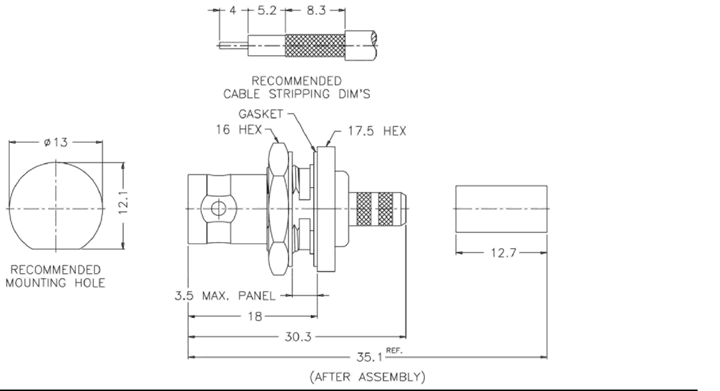

Schematic Drawing
Connex part number 112593 schematic
