 Connex Connector Product Specification Sheet
Part Number Add part number 112588 to your Quote. 112588
Family/Series: BNC Coaxial Connectors
Product Type: Right Angle Plug Crimp Attachments for Flexible Cable
Description: Right Angle Crimp/Solder Plug - Miniature Cable
Brass Shell

Specifications
Electrical
Cable Group 16    Cable Types: 180 / 195 / 122 / B82187 / B1865A / B1855
Finish Nickel
Insulation Delrin
Impedance 75 ohms
Crimp Tool B

Remark:  Cable Center Conductor Solder to pin directly

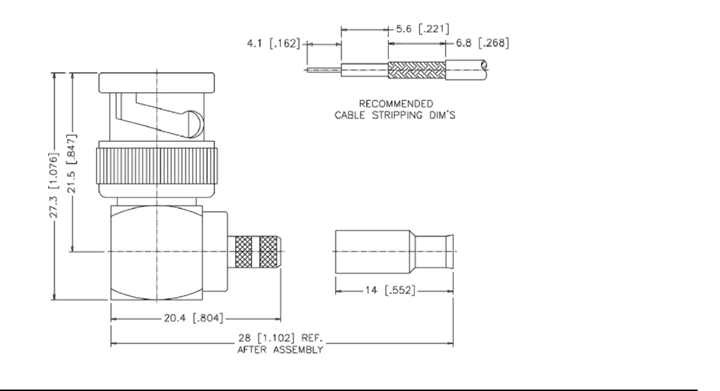

Schematic Drawing
Connex part number 112588 schematic
