 Connex Connector Product Specification Sheet
Part Number Add part number 112558 to your Quote. 112558
Family/Series: BNC Coaxial Connectors
Product Type: Clamp Attachments for Flexible Cable
Description: Straight Clamp Plug - Captive Contact
Brass Shell

Specifications
Electrical
Cable Group 07E    Cable Types: 11
Finish Nickel
Insulation Teflon
Impedance 75 ohms
Crimp Tool N/A

Remark:  Barrel O.D. = 12.5 mm

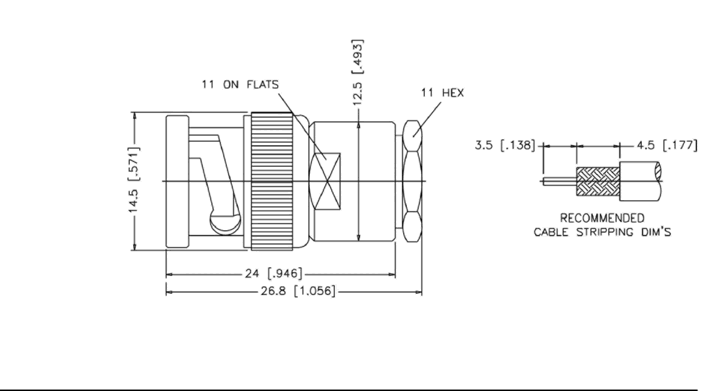

Schematic Drawing
Connex part number 112558 schematic
