Connex Connector BNC Type RF Coaxial Connector part number 112528

Part Number	112528
Family/Series:	BNC Coaxial Connectors
Product Type:	Right Angle Plug Crimp Attachments for Flexible Cable
Description:	Right Angle Crimp/Solder Plug - Miniature Cable Brass Shell

Specifications

Electrical

Cable Group

05A Cable Types: 316 / U DOUBLE BRAIDED

Finish

Nickel

Insulation

Delrin

Impedance

50 ohms

Crimp Tool

Remark:

Cable Center Conductor Solder to pin directly

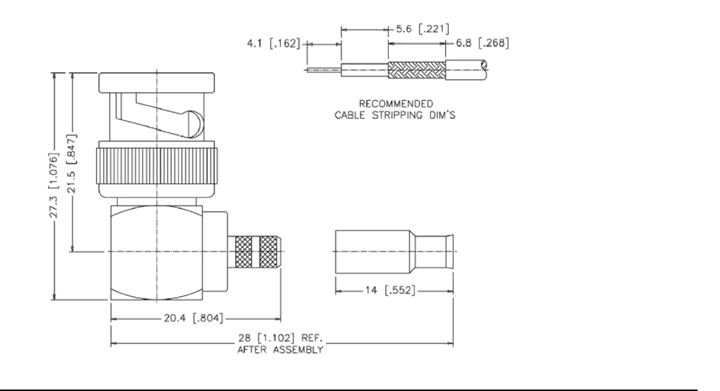

Schematic Drawing
