Connex Connector BNC Type RF Coaxial Connector part number 112521

Part Number	112521
Family/Series:	BNC Coaxial Connectors
Product Type:	Plug Crimp Attachments for Flexible Cable
Description:	Straight Crimp Plug - Captive Contact - Miniature Cable Brass Shell

Specifications

Electrical

Cable Group

16 Cable Types: 180 / 195 / 122 / B82187 / B1865A / B1855

Finish

Nickel

Insulation

Delrin

Impedance

75 ohms

Crimp Tool

Remark:

With teflon sleeve/Hex crimp size.178" *Center contact .053" diameter, 30µ" Au. True 75 ohm. Use .044 hex or 12-indent crimp

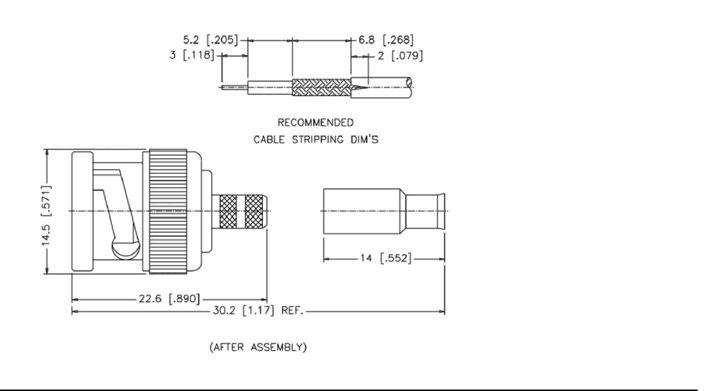

Schematic Drawing
