Connex Connector BNC Type RF Coaxial Connector part number 112436

Part Number	112436
Family/Series:	BNC Coaxial Connectors
Product Type:	Bulkhead Feedthrough Adapters
Description:	Jack-To-Jack Bulkhead Adapter

Specifications

Electrical

Cable Group

N/A

Finish

Nickel

Insulation

Delrin

Impedance

75 ohms

Crimp Tool

N/A

Remark:

7.0 mm [.276] Max. panel thickness, UG–492A

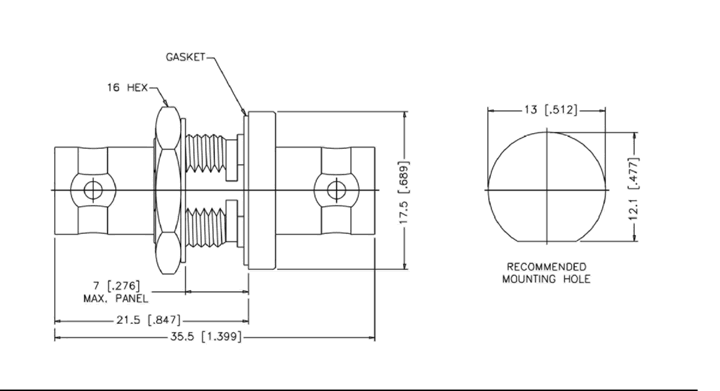

Schematic Drawing

Connex part number 112436 schematic
