Connex Connector BNC Type RF Coaxial Connector part number 112429

Part Number	112429
Family/Series:	BNC Coaxial Connectors
Product Type:	Bulkhead Receptacle/Solder Pot Terminals
Description:	Bulkhead Receptacle Jack L1 = 9.5 [.374] panel thickness, L = 33.0 [1.30]

Specifications

Electrical

Cable Group

N/A

Finish

Nickel

Insulation

Delrin

Impedance

75 ohms

Crimp Tool

N/A

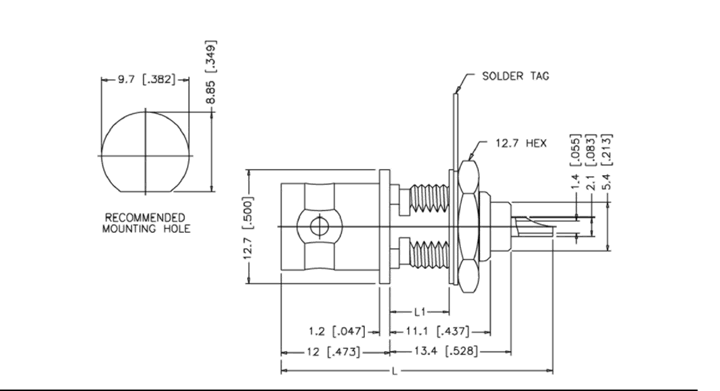

Schematic Drawing

Connex part number 112429 schematic
