Connex Connector BNC Type RF Coaxial Connector part number 112425

Part Number	112425
Family/Series:	BNC Coaxial Connectors
Product Type:	Bulkhead Receptacle/Solder Pot Terminals
Description:	Bulkhead Receptacle Jack L1 = 3.2 [.126] panel thickness, L = 26.7 [1.05]

Specifications

Electrical

Cable Group

N/A

Finish

Nickel

Insulation

Delrin

Impedance

75 ohms

Crimp Tool

N/A

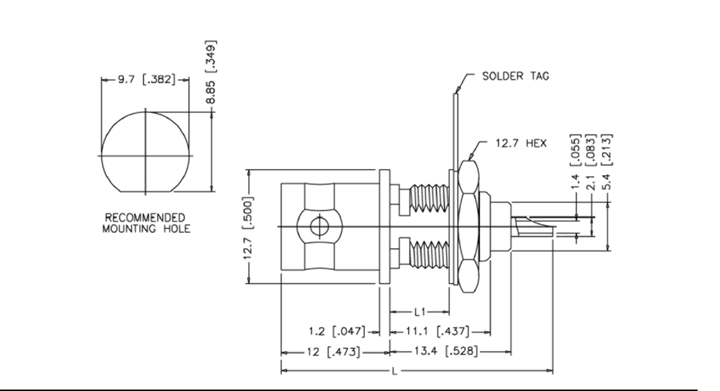

Schematic Drawing

Connex part number 112425 schematic
