Connex Connector BNC Type RF Coaxial Connector part number 112420

Part Number	112420
Family/Series:	BNC Coaxial Connectors
Product Type:	Bulkhead Receptacle/Solder Pot Terminals
Description:	Bulkhead Receptacle Plug Brass Shell

Specifications

Electrical

Cable Group

N/A

Finish

Nickel

Insulation

Delrin

Impedance

50 ohms

Crimp Tool

N/A

Remark:

4.5 [.177] Max. panel thickness

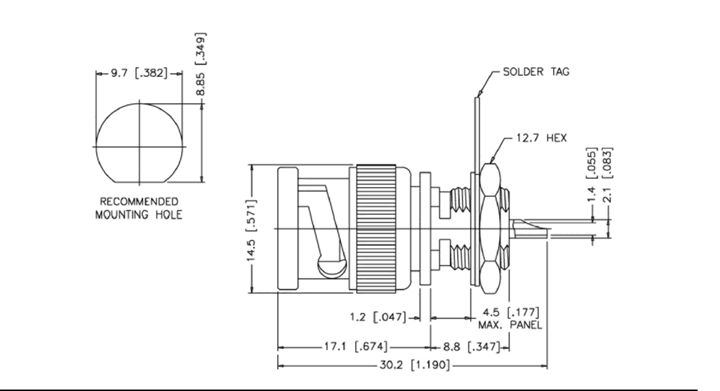

Schematic Drawing

Connex part number 112420 schematic
