 Connex Connector Product Specification Sheet
Part Number Add part number 112403 to your Quote. 112403
Family/Series: BNC Coaxial Connectors
Product Type: Wedge Compression Attachments for Flexible Cable
Description: Wedge Compression Jack

Specifications
Electrical
Cable Group 04    Cable Types: 59 / U PLENUM
Finish Nickel
Insulation Teflon
Impedance 75 ohms
Crimp Tool N/A

Remark:  With wedge contact

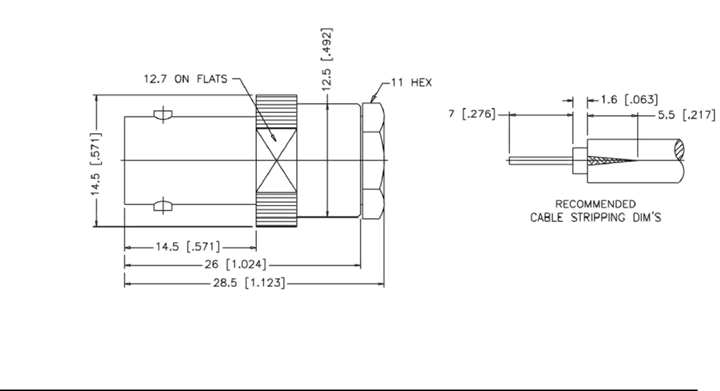

Schematic Drawing
Connex part number 112403 schematic
