Connex Connector BNC Type RF Coaxial Connector part number 112384

Part Number	112384
Family/Series:	BNC Coaxial Connectors
Product Type:	Wedge Compression Attachments for Flexible Cable
Description:	Wedge Compression Plug Brass Shell

Specifications

Electrical

Cable Group

02 Cable Types: LMR200 / B7807A

Finish

Nickel

Insulation

Delrin

Impedance

50 ohms

Crimp Tool

N/A

Remark:

With wedge pin

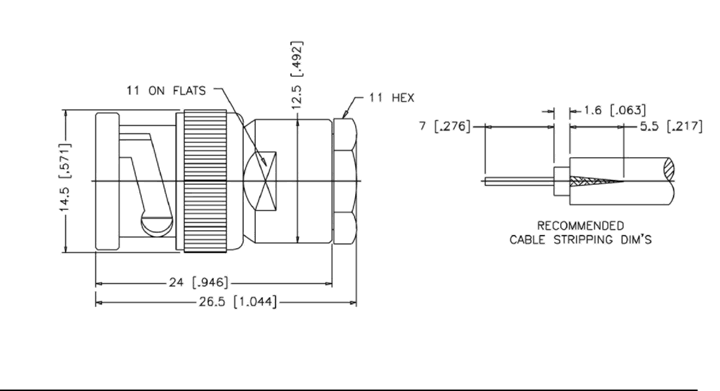

Schematic Drawing

Connex part number 112384 schematic
