Connex Connector BNC Type RF Coaxial Connector part number 112383

Part Number	112383
Family/Series:	BNC Coaxial Connectors
Product Type:	Wedge Compression Attachments for Flexible Cable
Description:	Wedge Compression Plug Brass Shell

Specifications

Electrical

Cable Group

03 Cable Types: 59 / 62 / 140 / 210

Finish

Nickel

Insulation

Delrin

Impedance

75 ohms

Crimp Tool

N/A

Remark:

With wedge pin

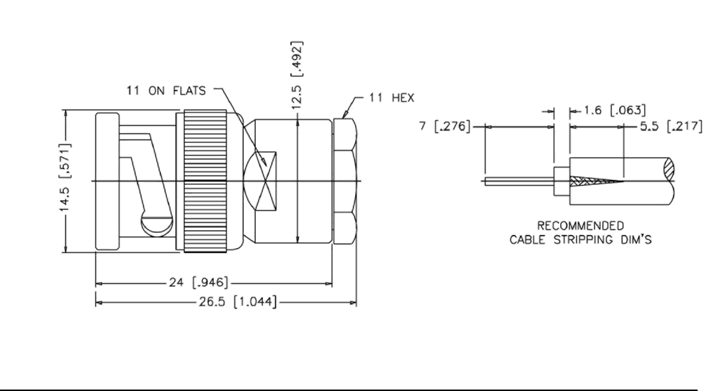

Schematic Drawing

Connex part number 112383 schematic
